Major Maintenance Kit, Kinney, Rotary Piston, KTC90, KTC112 , Part# 80948200BM
EUR 806.00
General product classifications
| Compatible Brands | Kinney |
| Family | Rotary Piston |
| Compatible Pump Models |
KTC90
KTC112 |
| Category | Repair Kits |
| Subcategory | Maintenance Kits |
| Country of origin | US |

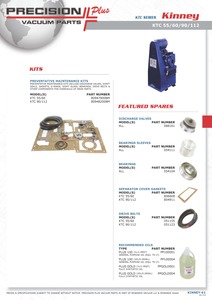

| Manual page | KINNEY-61 |
| Part Number | Description | Quantity | Qty in stock |
|---|---|---|---|
| 052506 | Cap Screw, Kinney, Rotary Piston, Part# 52506 | 4 | 0 |
| 054097 | Bearing Locknut, N-06, Kinney, Rotary Piston, Part# 54097 | 1 | 2 |
| 054104 | Ball Bearing - 30 mm, Kinney, Rotary Piston, Part# 54104 | 1 | 2 |
| 064036 | Retaining ring, External, Kinney, Rotary Piston, Part# 64036 | 1 | 3 |
| 054111 | Kinney Bearing, Sleeve (Race) - 1 1/4, Part# 054111 | 2 | 3 |
| 065100 | Shaft Seal Seat, Cast Iron (1 ¼) | 1 | 7 |
| 065112 | Shaft Seal Seat, (1 ¼) | 1 | 6 |
| 066161 | Discharge Valve Assembly | 1 | 35 |
| 066184 | Interstage Valve, Kinney, Rotary Piston, KTC55, KTC60, KTC90, KTC112, Part# 66184 | 1 | 0 |
| 072065 | Shaft Seal, 35 x 57. 5 x 9, Kinney, Rotary Piston, KTC90, KTC112, Part# 72065 | 1 | 0 |
| 051123 | V-Belt, Kinney, Rotary Piston, KT150C, KTC90, KTC112, Part# 051123 | 1 | 2 |
| 050232 | O-ring, 69.4 x 3.53 mm - Buna, Part# 50232 | 2 | 3 |
| 050227 | O-ring, 53.57 x 3.53 mm - Buna, Part# 050227 | 1 | 4 |
| 050220 | O-ring, 34.52 x 3.53 mm - Viton, Part# 50220 | 1 | 1 |
| 050151 | O-ring, 75.87 x 2.62 mm - Buna, Part# 50151 | 1 | 0 |
| 801237 | Ring SS, Backup, Kinney, Rotary Piston, Part# 801237 | 1 | 2 |
| 801262 | Ring Bearing Backup, Kinney, Rotary Piston, Part# 801262 | 1 | 3 |
| 802505 | Set Screw, Kinney, Rotary Piston, KT850C, KT500C, Part# 802505 | 3 | 17 |
| 802506 | Centre Wall Locking Pin, Kinney, Rotary Piston, Part# 802506. | 3 | 16 |
| 804192 | Oil Sight Glass, Plexiglas, Kinney, Rotary Piston, Part# 804192 | 1 | 5 |
| 804193 | Sight Glass Gasket, Kinney, Rotary Piston, KT850C, KT500C, Part# 804193 | 1 | 5 |
| 804911 | Cover Gasket, Kinney, Rotary Piston, Part# 804911 | 1 | 0 |
| 805951 | Top Plate Gasket, Kinney, Rotary Piston, Part# 805951 | 1 | 0 |
| 805952 | Bottom Plate Gasket, Kinney, Rotary Piston, Part# 805952 | 1 | 0 |
| 808495 | O-ring, 34.52 x 3.53 mm - Viton, Part# 808495 | 1 | 1 |
