Specifications
Displacement @60Hz Max | 3.889 × 10⁻³ |
Pressure Ultimate | 12000.00 |
Power Total Rated @60Hz | 450.00 |
Noise / Sound Level | 66.00 db(A) |

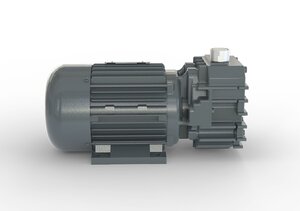

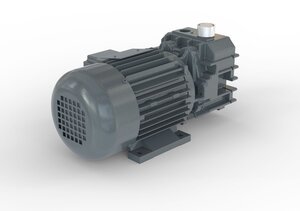

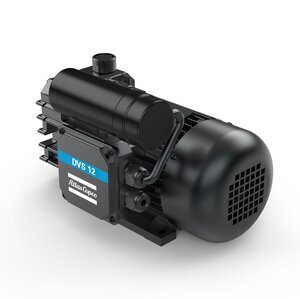

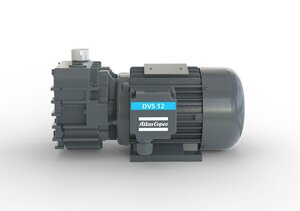

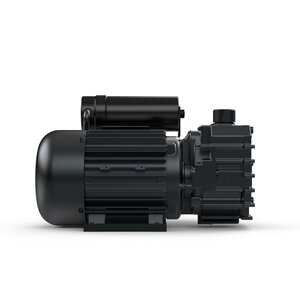

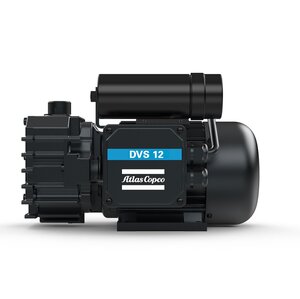

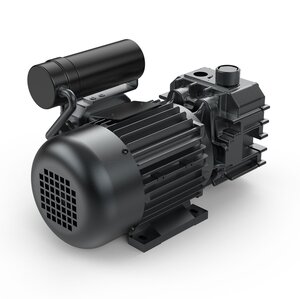

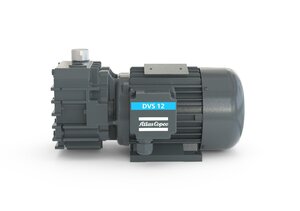

DVS 12 Dry Vane Vacuum Pump, 0.45 kW (@60 Hz), 120 mbar(a), Air Cooling
Dry Vane Pumps
We introduce our new range of oil-free vacuum pumps – the DVS series. These are single-stage dry vane vacuum pumps which do not require oil to operate. This ensures a clean operation, free of emissions and no contamination to the process. These dry rotary vane vacuum pumps are designed to be robust, simple, clean, compact, and silent suited for rough industrial applications with high efficiency and competitive initial investment costs.
We offer dry vane vacuum pumps with nominal suction flow from 5 m³/h to 140 m³/h and ultimate vacuum level up to 120-150 mbar(a) depending on the model.
General Product Information
Dimension Length | 0.304 |
Dimension Height | 0.174 |
Dimension Width | 0.182 |
Connection Inlet Flange | 1/2" BSPP (G) Female |
Noise / Sound Level | 66.00 db(A) |
Power Supply Frequency | 60 Hz |
Weight | 14.50 |
Power Supply Phase | 1-Ph |
Cooling Method | Air Cooling |
Power Supply Voltage | 1Ph 115V 60Hz |
Classification
Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
Classification Dry or Wet Pump | Dry pump |
Classification Vacuum Pump Technology | Dry Vane Pump |
Classification Product Pressure Range | Rough Vacuum: 1000 mbar - 1 mbar |
Performance Data
Pressure Ultimate | 12000.00 |
Power Total Rated @60Hz | 450.00 |
Nominal Rotational Speed 60Hz | 1700.00 |
Displacement @60Hz Max | 3.889 × 10⁻³ |
Operation Conditions - Limitations
Pressure Absolute Inlet Continous Max | 1.013 × 10⁵ |
Altitude Max | 1000.00 |
Temperature Inlet Gas Max | 40.00 |
Environmental Conditions
Temperature Ambient Operation Max | 40.00 |
Temperature Ambient Operation Min | 0.000 |
Temperature Ambient Storage Min | -20.00 |
Temperature Ambient Storage Max | 50.00 |
- 6996025405_AIB DVS 5-140_BR.pdf - Brazilian Portuguese - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-NL-Web.pdf - Dutch - Sales Leaflet
- 6996024720_AIB_DVS_5-140_EN.pdf - English - AIB Instruction Manual
- DVS 12 3002615689.pdf - English - Dimensional Drawing
- 6996 0099 03_Vacuum Solutions Overview_new VI_Verti_LR.pdf - English - Resource Library Document
- 6996009903-ACV-Overview-brochure-Web.pdf - English - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-EN-Web.pdf - English - Sales Leaflet
- 6996025403_AIB DVS 5-140_FR.pdf - French - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-FR-Web.pdf - French - Sales Leaflet
- 6996025401_AIB DVS 5-140_DE.pdf - German - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-DE-Web.pdf - German - Sales Leaflet
- 6996025404_AIB DVS 5-140_IT.pdf - Italian - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-IT-Web.pdf - Italian - Sales Leaflet
- 6996025406_AIB DVS 5-140_RU.pdf - Russian - AIB Instruction Manual
- 6996024720_AIB DVS 5-140_ZH.pdf - Simplified Chinese - AIB Instruction Manual
- 6996025402_AIB DVS 5-140_ES.pdf - Spanish (European) - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-ES-Web.pdf - Spanish (European) - Sales Leaflet
Product Title | Part Number | Price | Add to cart |
---|---|---|---|
Vacuum gauge capsule dial -1 - 0 bar(e), | 8092300329 | - | |
Vacuum gauge capsule dial 0 - 1000 mbar( | 8092300337 | - | |
Shock mounts (DVS 5-12) | 0017000000 | - | |
Vac. regulating valve VRV-B 1/4'' | 0017000019 | - | |
Vac. filter IF 1/2'' (paper) | 0017000005 | - | |
Vac. filter IF-B 1/2'' (poliester) | 0017000007 | - | |
Inlet hose fit. IHF (DVS 12-16) | 0017000027 | - | |
Non-ret. valve NRV-U 1/2'' | 0017000032 | - |
