Specifications

Displacement @50Hz Max 4.444 × 10⁻³
Displacement @60Hz Max 5.278 × 10⁻³
Pressure Ultimate 12000.00
Power Total Rated @50Hz 750.00
Power Total Rated @60Hz 900.00
Noise / Sound Level 63.00 db(A) 63.00 db(A)

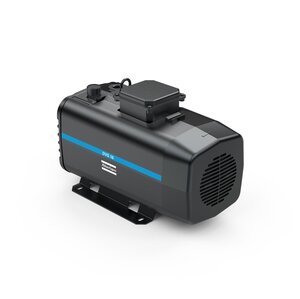

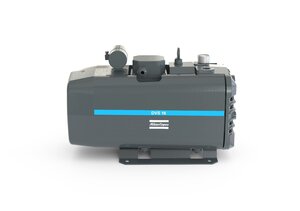

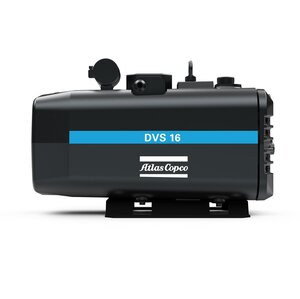

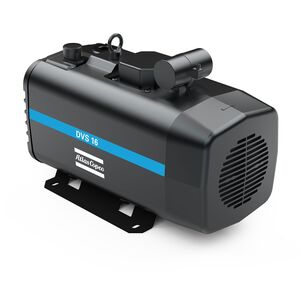

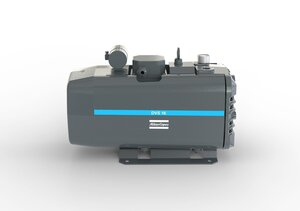

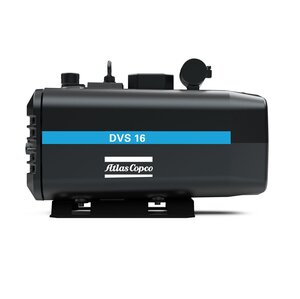

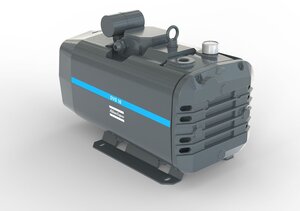

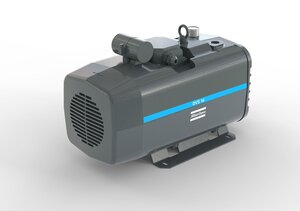

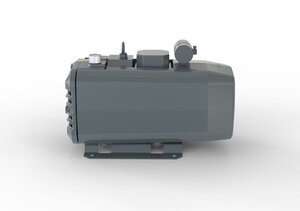

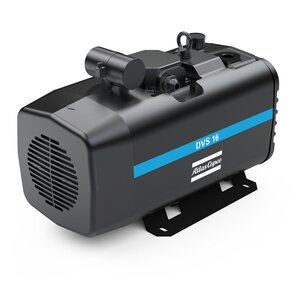

DVS 16 Dry Vane Vacuum Pump, 0.75 kW (@50 Hz), 120 mbar(a), Air Cooling

3002615663

0 In Stock

Click For Availability Typical lead time 6 week(s)

Variant

Explore the range of variants given below to compare the product

Short Description Part Number Power Supply Voltage
3002615663 1Ph 220-240V 50/60Hz
3002615677 3Ph 220-230, 380-400 50Hz / 220-230, 380-460 60Hz
3002615683 3Ph 575V 60Hz

Dry Vane Pumps

We introduce our new range of oil-free vacuum pumps – the DVS series. These are single-stage dry vane vacuum pumps which do not require oil to operate. This ensures a clean operation, free of emissions and no contamination to the process. These dry rotary vane vacuum pumps are designed to be robust, simple, clean, compact, and silent suited for rough industrial applications with high efficiency and competitive initial investment costs.

We offer dry vane vacuum pumps with nominal suction flow from 5 m³/h to 140 m³/h and ultimate vacuum level up to 120-150 mbar(a) depending on the model.

General Product Information

Dimension Length 0.412
Dimension Height 0.270
Dimension Width 0.206
Connection Inlet Flange 1/2" BSPP (G) Female
Noise / Sound Level 63.00 db(A)
63.00 db(A)
Power Supply Frequency 50 Hz
60 Hz
Weight 31.00
Power Supply Phase 1-Ph
Cooling Method Air Cooling
Connection vacuum outlet flange 1/2" BSPP (G) Female
Power Supply Voltage 1Ph 220-240V 50/60Hz

Performance Data

Pressure Backing Max 2.000 × 10⁵
Pressure Ultimate 12000.00
Power Total Rated @50Hz 750.00
Power Total Rated @60Hz 900.00
Nominal Rotational Speed 50Hz 1400.00
Nominal Rotational Speed 60Hz 1700.00
Displacement @50Hz Max 4.444 × 10⁻³
Displacement @60Hz Max 5.278 × 10⁻³

Classification

Classification High / Medium / Rough Vacuum pump Rough Vacuum Pump
Classification Dry or Wet Pump Dry pump
Classification Vacuum Pump Technology Dry Vane Pump
Classification Product Pressure Range Rough Vacuum: 1000 mbar - 1 mbar
Above Atmospheric Pressure: 1000 - 2000 mbar

Operation Conditions - Limitations

Pressure Absolute Inlet Continous Max 1.013 × 10⁵
Altitude Max 1000.00
Temperature Inlet Gas Max 40.00

Environmental Conditions

Temperature Ambient Operation Max 40.00
Temperature Ambient Operation Min 0.000
Temperature Ambient Storage Min -20.00
Temperature Ambient Storage Max 50.00
Product Title Part Number Price Add to cart
Filter Kit DVS 16, 25 3002628003 -
