Specifications
| Displacement @50Hz Max | 0.156 |
| Displacement @60Hz Max | 0.189 |
| Pressure Ultimate | -20000.00 |
| Power Total Rated @50Hz | 5500.00 |
| Power Total Rated @60Hz | 6500.00 |
| Noise / Sound Level | 74.80 db(A) 74.80 db(A) |

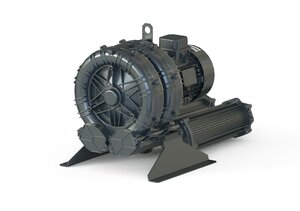

DBSt 560-200 Side Channel Blower, Single stage, 5.5 kW (@50 Hz)
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| 3002615460 | |
| 3002615461 | |
| 3002615462 |
Side Channel Blowers
Introducing the Atlas Copco DB series Side Channel Blowers - a tested and reliable technology for rough vacuum level and low pressure as well, suitable for industrial application in the most efficient way possible. Available in single and double-stage variants the DB series do not require oil to operate. This ensures a clean operation, free of emissions and no contamination to the process. They are designed to be robust, clean, compact, and silent suited for rough industrial applications with high efficiency. The modular construction of DB side channel blowers ensures efficient performance with minimal energy consumption.
DBSt
DBSt - Twin impellers and single stage
The twin impellers working in parallel allow for large quantities of suction air up to 1980 m3/h with discrete vacuum levels up to -300 mbar. The twin impeller variant increases the flow capacity of the blower.
General Product Information
| Dimension Length | 0.706 |
| Dimension Height | 0.455 |
| Dimension Width | 0.404 |
| Connection Inlet Flange | 3" BSPP (G) Female |
| Noise / Sound Level |
74.80
db(A)
74.80 db(A) |
| Power Supply Frequency |
50 Hz
60 Hz |
| Weight | 71.50 |
| Power Supply Phase | 3-Ph |
| Cooling Method | Air Cooling |
| Connection vacuum outlet flange | 3" BSPP (G) Female |
| Power Supply Voltage |
3Ph 400/690V 50Hz
3Ph 460/795V 60Hz |
Performance Data
| Pressure Backing Max | 20000.00 |
| Pressure Ultimate | -20000.00 |
| Power Total Rated @50Hz | 5500.00 |
| Power Total Rated @60Hz | 6500.00 |
| Nominal Rotational Speed 50Hz | 49.00 |
| Nominal Rotational Speed 60Hz | 58.83 |
| Pressure Differential Max @50Hz | 20000.00 |
| Pressure Differential Max @60Hz | 17500.00 |
| Displacement @50Hz Max | 0.156 |
| Displacement @60Hz Max | 0.189 |
Classification
| Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
| Classification Dry or Wet Pump | Dry pump |
| Classification Product Pressure Range |
Rough Vacuum: 1000 mbar - 1 mbar
Above Atmospheric Pressure: 1000 - 2000 mbar |
Variants
| Impeller Type | Twin Impeller |
| Stages | Single stage |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.050 × 10⁵ |
| Altitude Max | 1000.00 |
| Temperature Inlet Gas Max | 40.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | -15.00 |
