Specifications
| Displacement @50Hz Max | 2.222 × 10⁻³ |
| Displacement @60Hz Max | 2.500 × 10⁻³ |
| Pressure Ultimate | 15000.00 |
| Power Total Rated @50Hz | 250.00 |
| Power Total Rated @60Hz | 300.00 |
| Noise / Sound Level | 59.00 db(A) 59.00 db(A) |

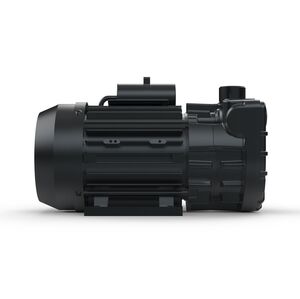

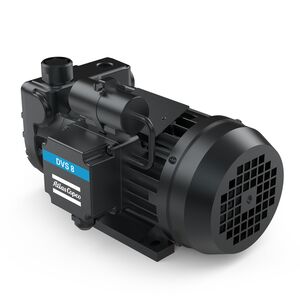

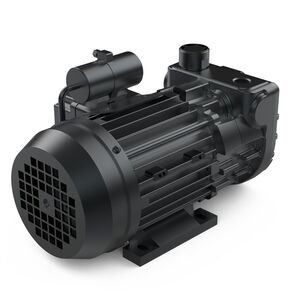

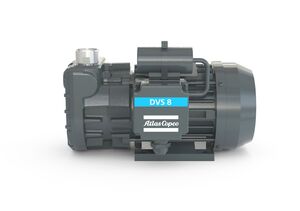

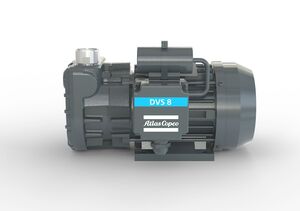

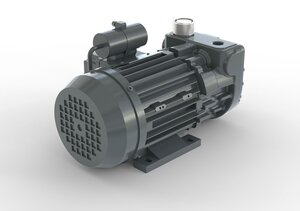

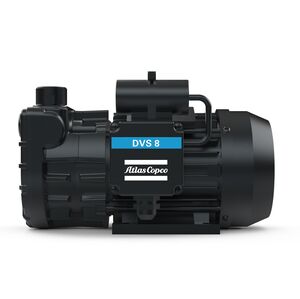

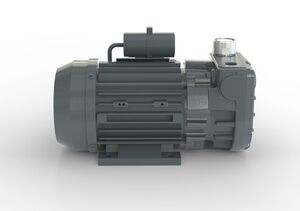

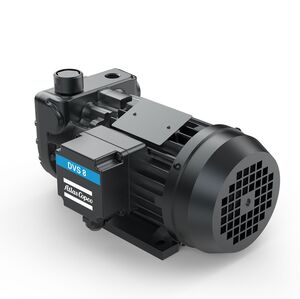

DVS 8 Dry Vane Vacuum Pump, 0.25 kW (@50 Hz), 150 mbar(a), Air Cooling
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Power Supply Voltage |
|---|---|---|
| 3002615662 | 1Ph 220-240V 50/60Hz | |
| 3002615667 | 3Ph 220-230, 380-400 50Hz / 220-230, 380-460 60Hz | |
| 3002615676 | 3Ph 110-115V 60Hz |
Dry Vane Pumps
We introduce our new range of oil-free vacuum pumps – the DVS series. These are single-stage dry vane vacuum pumps which do not require oil to operate. This ensures a clean operation, free of emissions and no contamination to the process. These dry rotary vane vacuum pumps are designed to be robust, simple, clean, compact, and silent suited for rough industrial applications with high efficiency and competitive initial investment costs.
We offer dry vane vacuum pumps with nominal suction flow from 5 m³/h to 140 m³/h and ultimate vacuum level up to 120-150 mbar(a) depending on the model.
General Product Information
| Dimension Length | 0.253 |
| Dimension Height | 0.147 |
| Dimension Width | 0.167 |
| Connection Inlet Flange | 3/8" BSPP (G) Female |
| Noise / Sound Level |
59.00
db(A)
59.00 db(A) |
| Power Supply Frequency |
50 Hz
60 Hz |
| Weight | 8.50 |
| Power Supply Phase | 3-Ph |
| Cooling Method | Air Cooling |
| Connection vacuum outlet flange | 1/2" BSPP (G) Female |
| Power Supply Voltage | 3Ph 220-230, 380-400 50Hz / 220-230, 380-460 60Hz |
Performance Data
| Pressure Backing Max | 1.800 × 10⁵ |
| Pressure Ultimate | 15000.00 |
| Power Total Rated @50Hz | 250.00 |
| Power Total Rated @60Hz | 300.00 |
| Nominal Rotational Speed 50Hz | 2800.00 |
| Nominal Rotational Speed 60Hz | 3300.00 |
| Displacement @50Hz Max | 2.222 × 10⁻³ |
| Displacement @60Hz Max | 2.500 × 10⁻³ |
Classification
| Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
| Classification Dry or Wet Pump | Dry pump |
| Classification Vacuum Pump Technology | Dry Vane Pump |
| Classification Product Pressure Range |
Rough Vacuum: 1000 mbar - 1 mbar
Above Atmospheric Pressure: 1000 - 2000 mbar |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.013 × 10⁵ |
| Altitude Max | 1000.00 |
| Temperature Inlet Gas Max | 40.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 0.000 |
| Temperature Ambient Storage Min | -20.00 |
| Temperature Ambient Storage Max | 50.00 |
- 6996025405_AIB DVS 5-140_BR.pdf - Brazilian Portuguese - AIB Instruction Manual
- 6996023696-DVS-PT-BR-Web.pdf - Brazilian Portuguese - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-NL-Web.pdf - Dutch - Sales Leaflet
- Brochure_DZS-serie 6996023608-DVS_NL.pdf - Dutch - Sales Leaflet
- 6996024720_AIB_DVS_5-140_EN.pdf - English - AIB Instruction Manual
- DVS 8 1ph 3002615662.pdf - English - Dimensional Drawing
- DVS 8 3002615667.pdf - English - Dimensional Drawing
- 6996 0099 03_Vacuum Solutions Overview_new VI_Verti_LR.pdf - English - Resource Library Document
- 6996009903-ACV-Overview-brochure-Web.pdf - English - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-EN-Web.pdf - English - Sales Leaflet
- 6996023693-DVS-EN-Web.pdf - English - Sales Leaflet
- 6996025403_AIB DVS 5-140_FR.pdf - French - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-FR-Web.pdf - French - Sales Leaflet
- 6996023603-DVS Brochure-FR-Web.pdf - French - Sales Leaflet
- 6996025401_AIB DVS 5-140_DE.pdf - German - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-DE-Web.pdf - German - Sales Leaflet
- 6996023604-DVS-DE-Web.pdf - German - Sales Leaflet
- 6996025404_AIB DVS 5-140_IT.pdf - Italian - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-IT-Web.pdf - Italian - Sales Leaflet
- 6996023607-DVS-IT-Web.pdf - Italian - Sales Leaflet
- 6996023614-DVS-PL.pdf - Polish - Sales Leaflet
- 6996025406_AIB DVS 5-140_RU.pdf - Russian - AIB Instruction Manual
- 6996024720_AIB DVS 5-140_ZH.pdf - Simplified Chinese - AIB Instruction Manual
- 6996025402_AIB DVS 5-140_ES.pdf - Spanish (European) - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-ES-Web.pdf - Spanish (European) - Sales Leaflet
- 6996023605-DVS-ES-Web.pdf - Spanish (European) - Sales Leaflet
- 6996023638-DVS-TR-Web.pdf - Turkish - Sales Leaflet
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Vacuum gauge capsule dial -1 - 0 bar(e), | 8092300329 | - | |
| Vacuum gauge capsule dial 0 - 1000 mbar( | 8092300337 | - | |
| Shock mounts (DVS 5-12) | 0017000000 | - | |
| Vac. regulating valve VRV-B 1/4'' | 0017000019 | - | |
| Vac. filter IF 3/8'' (paper) | 0017000004 | - | |
| Relief valve PRV-8 | 0017000022 | - | |
| Inlet hose fit. IHF (DVS 8) | 0017000026 | - | |
| Non-ret. valve NRV-U 3/8'' | 0017000031 | - | |
| Pressure gauge 0-1000 mbar | 0017000091 | - | |
| Inlet hose fit. IHF (DVS 25) | 0017000028 | - |
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Filter Kit DVS 8 | 3002628002 | - |
