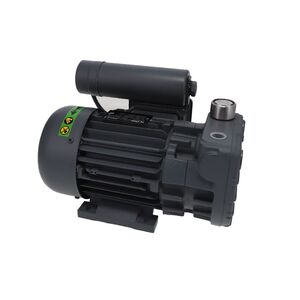

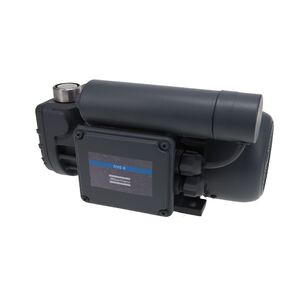

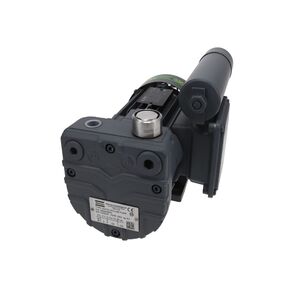

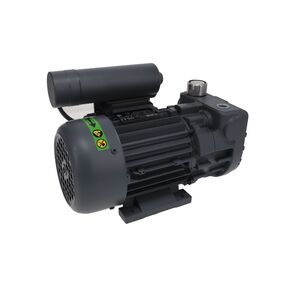

DVS 8 Dry Vane Vacuum Pump, 0.3 kW (@60 Hz), 150 mbar(a), Air Cooling
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number | Dimension Height | Power Supply Frequency | Power Supply Phase | Power Supply Voltage | Power Total Rated | Power Total Rated @50Hz | Nominal Rotational Speed 50Hz | Displacement @50Hz Max |
|---|---|---|---|---|---|---|---|---|---|
| 3002615662 | 0.160 | 50 Hz 60 Hz | 1-Ph | 1Ph 220-240V 50/60Hz | 250.00 | 250.00 | 2800.00 | 2.222 × 10⁻³ | |
| 3002615667 | 0.147 | 50 Hz 60 Hz | 3-Ph | 3Ph 220-230, 380-400V 50Hz / 220-230, 380-460V 60Hz | 250.00 | 250.00 | 2800.00 | 2.222 × 10⁻³ | |
| 3002615676 | 0.147 | 60 Hz | 3-Ph | 3Ph 110-115V 60Hz | 300.00 | - | - | - |
Dry Vane Pumps
We introduce our new range of oil-free vacuum pumps – the DVS series. These are single-stage dry vane vacuum pumps which do not require oil to operate. This ensures a clean operation, free of emissions and no contamination to the process. These dry rotary vane vacuum pumps are designed to be robust, simple, clean, compact, and silent suited for rough industrial applications with high efficiency and competitive initial investment costs.
We offer dry vane vacuum pumps with nominal suction flow from 5 m³/h to 140 m³/h and ultimate vacuum level up to 120-150 mbar(a) depending on the model.
General Product Information
| Dimension Length | 0.253 |
| Dimension Height | 0.147 |
| Dimension Width | 0.167 |
| Connection Inlet Flange | 3/8" BSPP (or G 3/8") Female |
| Noise / Sound Level |
59.00
db(A)
59.00 db(A) |
| Power Supply Frequency | 60 Hz |
| Weight | 8.50 |
| Power Supply Phase | 3-Ph |
| Cooling Method | Air Cooling |
| Connection Outlet Flange | 1/2" BSPP (or G 1/2") Female |
| Power Supply Voltage | 3Ph 110-115V 60Hz |
| Connection Inlet / Outlet Flange | 3/8" BSPP (or G 3/8") Female / 1/2" BSPP (or G 1/2") Female |
Performance Data
| Pressure Backing Max | 1.800 × 10⁵ |
| Pressure Ultimate | 15000.00 |
| Power Total Rated | 300.00 |
| Power Total Rated @60Hz | 300.00 |
| Nominal Rotational Speed 60Hz | 3300.00 |
| Displacement @60Hz Max | 2.500 × 10⁻³ |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.013 × 10⁵ |
| Altitude Max | 1000.00 |
| Temperature Inlet Gas Max | 40.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 0.000 |
| Temperature Ambient Storage Min | -20.00 |
| Temperature Ambient Storage Max | 50.00 |
Classification
| Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
| Classification Dry or Wet Pump | Dry |
| Classification Vacuum Pump Technology | Dry Vane Pump |
| Classification Product Pressure Range |
Rough Vacuum: 1000 mbar - 1 mbar
Above Atmospheric Pressure: 1000 - 2000 mbar |
